WEMHONER, KT-M 34/17-440 - Membrane Press
2008-09-18
Id: 459
459
1

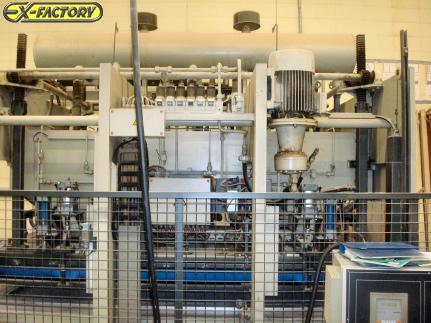

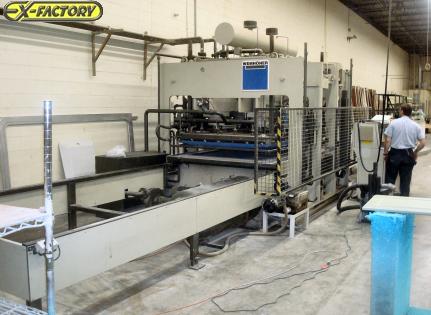

Wemhoner, kt-m 34/17-440 - membrane press

Wood Equipment. Platen (lower) dimensions: 67 in. x 110" (1,700 x 2,800 mm), Loading on 67 in. side, automatic shuttle feed with (2) shuttle tables; 12 in. max. adjustable daylight, 2 in. max. workpiece thickness. ~ (6) Downstroke hydraulic cylinders with 11.8" stroke for the same opening, (2) open/close cylinders. ~ 111 PSI Specific pressure & 100 PSI membrane specific pressure; capacity when used as Membrane press with chamber cap. of 99 in. x 50 in.. ~ Equipped with Vario-Frame system, allows for automatic adjustment of membrane proximity to the product for quicker production. ~ Flame-cut steel plate frames with weld-free mechanical assembly for distortion-free operation. ~ Press platens through bored for circulation of thermal oil (heated electrically), double circuit thermal regulation system including piping between Press & regulation system; electrical heating system has approx. 100 kW power consumption. ~ SIEMENS SPS Electrical control system with keyboard & LCD screen installed in main control desk. ~ Complete top & bottom platen vacuum system with accumulator tank, includes piping to upper & lower press platens; flexible membrane with "quick removal" system. ~ Complete with: (2) Aluminum lined shuttle tables for laying up & laminating components with PVC foils. [Ref. #PM-010211] - Take advantage of the exchange rate and buy Used in the USA! - YMFG 1996; Very good condition
WEMHONER, KT-M 34/17-440 - Membrane Press WEMHONER, KT-M 34/17-440 - Membrane Press
