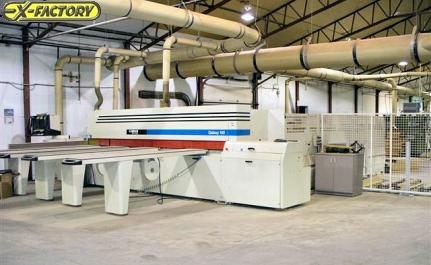

GABBIANI, Galaxy 140 HS/16 - Rear Load, Automatic Panel Saw
2008-09-16
Id: 457
457
1
Gabbiani, galaxy 140 hs/16 - rear load, automatic panel saw

Wood Equipment. 177 in. (4,500 mm) Overall cutting length, 5-1/2 in. (140 mm) max. saw blade projection; 25 HP main motor w/pneumatic saw blade quick-change system. ~ 3 HP Separate scoring motor, 13.7 in. dia. - 4,500 RPM main & 7.8 in. dia. - 7,200 RPM scoring blade externally adjustable. ~ Saw carriage travel speed from 0 - 492 FPM, hydraulically driven; 492 FPM constant return, powered by SIEMENS AC brushless motor. ~ Back fence with: (9) Material clamps, fence/pusher speed from 0 - 230 FPM, return of 230 FPM; powered by SIEMENS AC brushless motor on rack & pinion system. ~ Alternate pressure beam for final trim cut, pneumatic side alignment with dual rollers. ~ PC Front-end controller with: Windows operating system, 14 in. color monitor, virtually infinite program storage capacity, data input keyboard & ASCII keyboard for data entry. ~ 3-1/2 in. Floppy disk drive & CD-ROM for data transfer, (2) RS-232 port capability for downloading from the office is possible, GABBIANI OTTIMO software with EASY CUT. ~ Complete with: (4) Air float tables 118 in. x 19-5/8in.; 4-post electronically controlled screw-type lift table, 24 in. (600 mm) stack height without pit (1,300 mm/51 in. with pit), max. board size 12` x 6`, powered infeed roller conveyor located on the LH side. [# PH-011711]- Fantastic Price for a Heavy Duty and incredibly good condition GALAXY! Take advantage of the exchange rate and buy Used in the USA! - YMFG 2001; Excellent Condition
