MORBIDELLI, Author 636 Top - Flat Table Machine W/ATC & Boring
2008-09-12
Id: 573
573
1

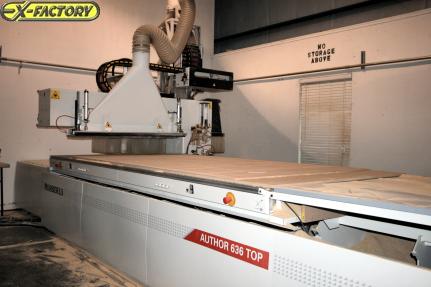

Morbidelli, author 636 top - flat table machine w/atc & boring

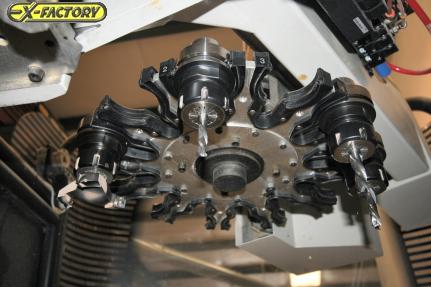

Wood equipment. Single 5` x 12` stationary aluminum table, square grid pattern for fixturing parts, allows use of vacuum pods or closed cell rope gasketing material and spoil-boards for nested based machining. ~~ Equipped with: (1) 15 HP Power 2000 Electro spindle w/lifetime lubrication, HSK 63 tool coupling; spindle speeds from 900 - 18,000 RPM, 12-pos. ATC tool carousel, (1) 18-spindle boring head (12 vertical and 6 horizontal). ~~ Closed-loop AC servo drive system, feed rates up to 1,500 IPM. All axes with linear guide-ways. ~~ NUM 1040 CNC PC based controller with Zeilog III, Windows based operating environment, 1.2 GB hard drive, keypad, 3-1/2 in. disk drive and (2) serial ports RS-232 & RS-242, cabinet with a KELVIN air conditioner. ~~ Complete with: 40 HP Vacuum pump, safety enclosure, assorted tooling, emergency stop rope, and (6) pop-up pins on the table perimeter; nesting rake, electric lift system, DANTHERM 15 HP, 5,000 CFM Dust Collection system. ~~ WOW! A complete manufacturing system ready for delivery! [Ref. #FT-010061]. ~~ Take advantage of the exchange rate and buy Used in the USA! ~~







YMFG: 2006



Excellent Condition
